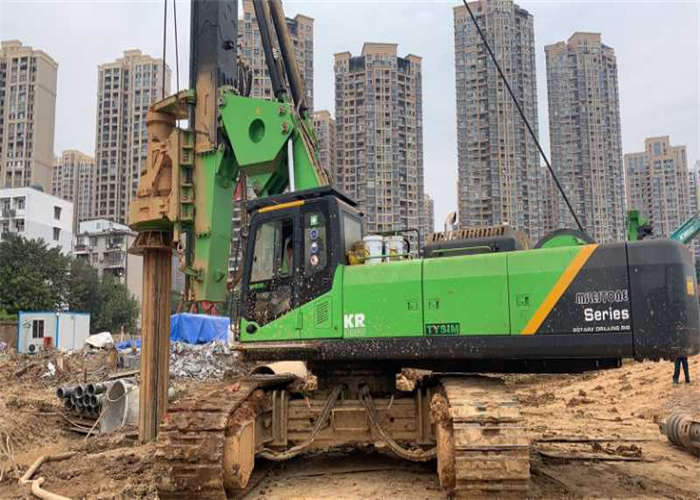

Sales Ranges 60+ Countries KR360E Max Diameter 2000 2500Mm Hydraulic Rotary Pile Drilling Rigs
Features
Mast
It is one of main components of rotary drilling rig, is main body of suspending and guiding working device; the equipment has function of automatically making mast upside down, and is equipped with reinforced type mast, and service life of mast can be ensured.
Chassis
The special chassis for rotary drilling rig made by TYSIM maches perfectly to the power system and hydraulic system.
Engine
The original made in USA powerful Cummins engine is selected to integrate with core technology of TYSIM in electronic control system.
Main winch
It is provided with the complete set of imported hydraulic system assembly, which makes the main winch high-efficiency and powerful.
Auxiliary winch
It has auxiliary winding function, which makes construction conveniently.
Oil cylinder
Specially-equipped oil cylinder used for pressurizing can make drilling powerful, and travel after pressurizing reach to 6000mm
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 360 |
| Max. drilling diameter | mm | 2000/2500 |
| Max. drilling depth | m | 83/54/62 |
| Working speed | rpm | 7~26 |
| Max. cylinder pressure | kN | 220 |
| Max. hoist capacity | kN | 220 |
| Main winch pull force | kN | 320 |
| Main winch speed | m/min | 65 |
| Auxiliary winch pull force | kN | 110 |
| Auxiliary winch speed | m/min | 70 |
| Max. cylinder stroke | mm | 6000 |
| Mast side raking | ° | ±5 |
| Mast raking forward | ° | 5 |
| Mast raking backward | ° | 90 |
| System pressure | mpa | 34.3 |
| Pilot pressure | mpa | 4 |
| Max. walking speed | km/h | 1.5 |
| Max. pull force | kN | 560 |
| Operating height | mm | 22903 |
| Operating width | mm | 4300 |
| Transport height | mm | 3660 |
| Transport width | mm | 3000 |
| Transport length | mm | 16525 |
| Total weight | t | 90 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. TYSIM core team is instituted by the senior researchers.
3: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
